Letting an agent annotate my screenshots for docs

What I wanted to find out

When I write documentation I take screenshots as I go, and they land on my desktop with names like Screenshot 2026-09-14 at 18.03.12.png. Then the slow part starts: opening each one, working out which step it belongs to, cropping it, drawing a box around the button, writing the caption somewhere it does not cover the thing it names.

The question was whether I could skip all of that. Hand the agent the folder, let it look at the images to understand what it is even writing about, have it help with the text, and then have it produce the marked-up figures. No Figma, no going back and forth about where a box goes.

The part I expected to be hard was the drawing. It turned out not to be.

How it was tested

An annotation is a JavaScript module, not a drawing. It names a source image and a list of shapes in percentages of the frame, and a renderer lays them over the screenshot in Chrome and rephotographs the page with Playwright.

Chrome is the whole trick. The rounded corners, the shadows, the text rendering and the blur are the browser’s, so none of it has to be reimplemented, and the output is a PNG at the exact dimensions of the source.

1Drop the capture inWhatever the screenshot tool named it
2Render the gridA percentage overlay on the image
3Read the coordinatesLook once, write them down
4Write the specA JS file: boxes, arrows, notes, crops
5RenderChrome composites, Playwright shoots

Only step three needs a pair of eyes on the image. The rest is a command.

Step three is where the experiment nearly failed. Asked to place a box around a button by eye, the agent is off by around 2%, which is small on paper and obvious in the image. The fix is to stop asking it to estimate: a grid in percentages is rendered over the capture first, it reads the numbers off that grid once, and every box after that lands on the pixel.

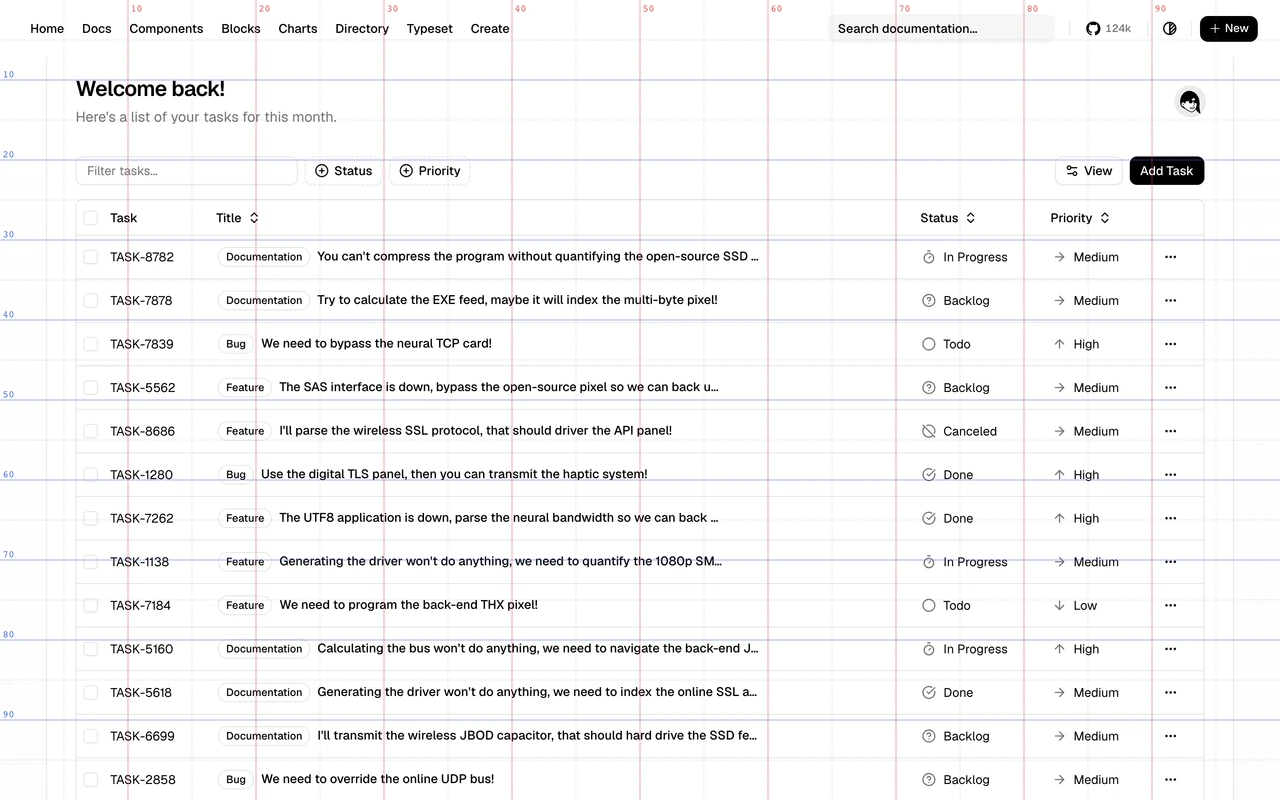

A task list interface with a red and blue grid drawn over it, marked every ten percent horizontally and vertically. — The grid pass. It exists only to be looked at: read x: 88.1, y: 19.4 off it, then throw it away. Coordinates stay in percentages, so a recapture at a different size re-annotates without touching the numbers.

Six primitives cover what a documentation figure needs.

Primitive	What it does
`box`	The rounded frame and its halo, with an optional number and caption
`arrow`	A curved arrow, point oriented, for a single “click this”
`note`	A text card: a title and a line of body
`spotlight`	Darkens everything except the holes you cut
`zoom`	A magnifier: a crop, enlarged, placed somewhere with room
`redact`	Blurs a region

What came out

Reading the screenshots works. Given the folder with no useful file names, the agent identified which product each capture showed, which screen, and which one illustrated which step, well enough to draft the text around them.

Drawing works too, and it is fast: because the spec is code, a screenshot retaken after a UI change is re-annotated by rerunning one command, as long as nothing moved more than about 1%.

The part that does not reduce to a command is where the caption goes, and it is decided by the screenshot rather than by the tool.

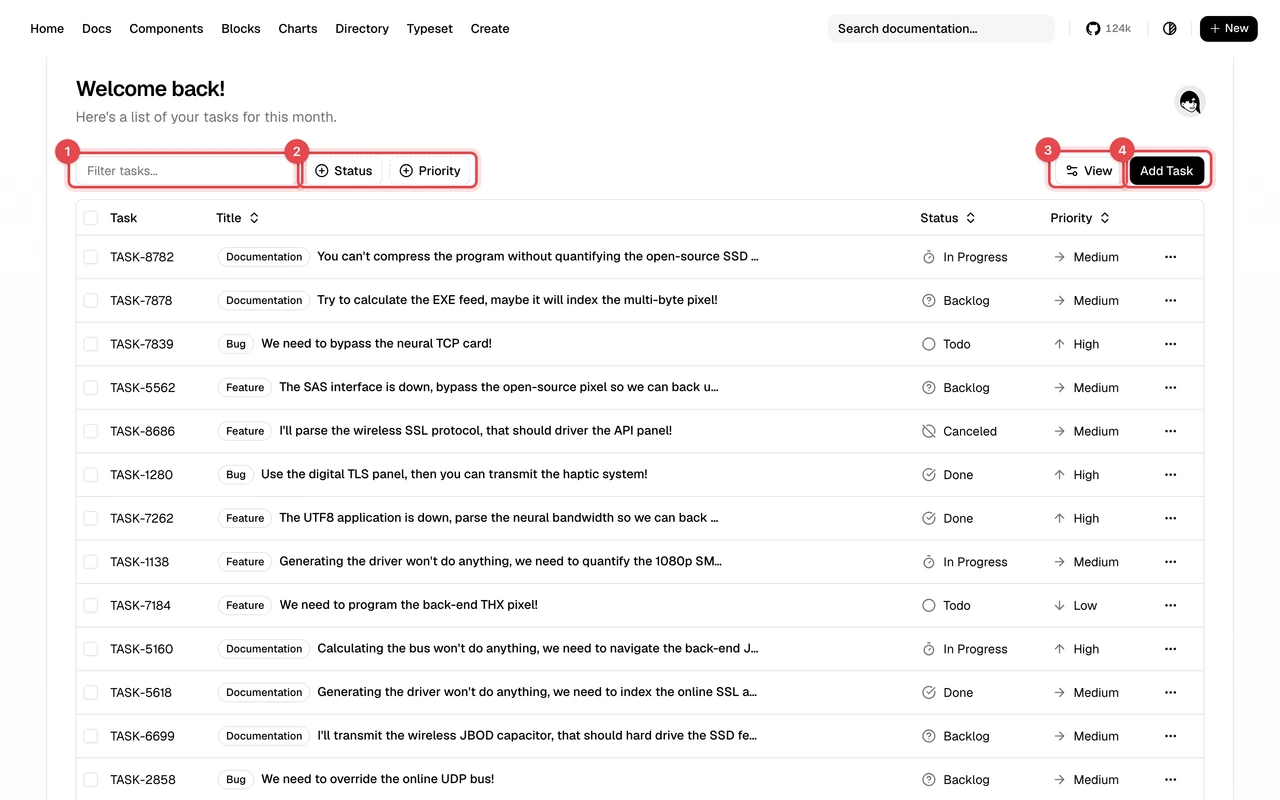

A task list. Four numbered red badges sit on the filter box, the status and priority chips, the view button and the add task button. There are no captions anywhere on the image. — No room. The toolbar sits flush against the table header, so there is not 60px of empty space above or below it. Any caption placed there covers the interface, so the figure carries numbered badges only and the numbered list lives in the prose.

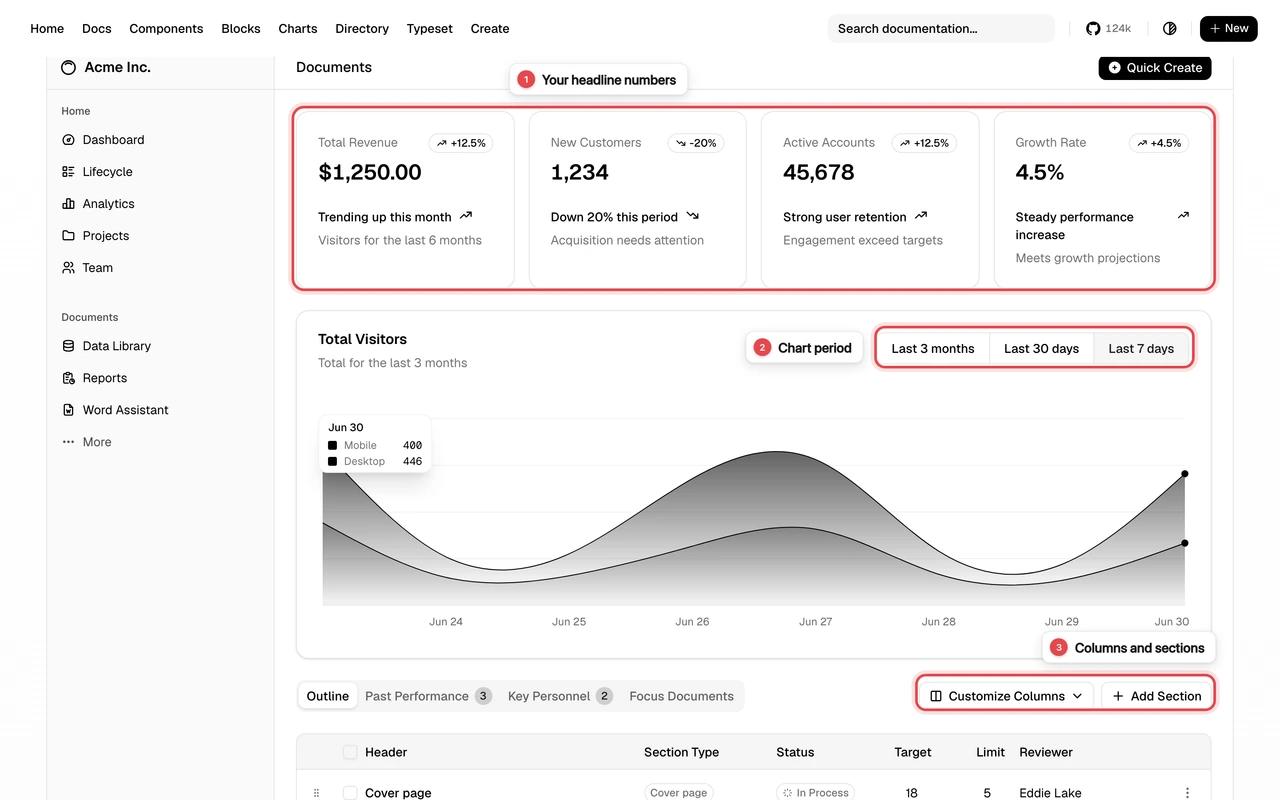

A dashboard with four stat cards. Three numbered badges each carry a short caption that sits beside the element it names, in the empty space of the layout. — The same product, a page that breathes. Here the captions sit next to their targets and cover nothing, so the figure is self-contained.

The rule that falls out of those two: if the interface has no white space, the caption leaves the image. A numbered badge on the screenshot and a numbered list in the text, or a crop that manufactures the space. It is not a preference, it is readable from the screenshot before any drawing starts.

The magnifier is the one primitive that turned out to be indispensable rather than decorative.

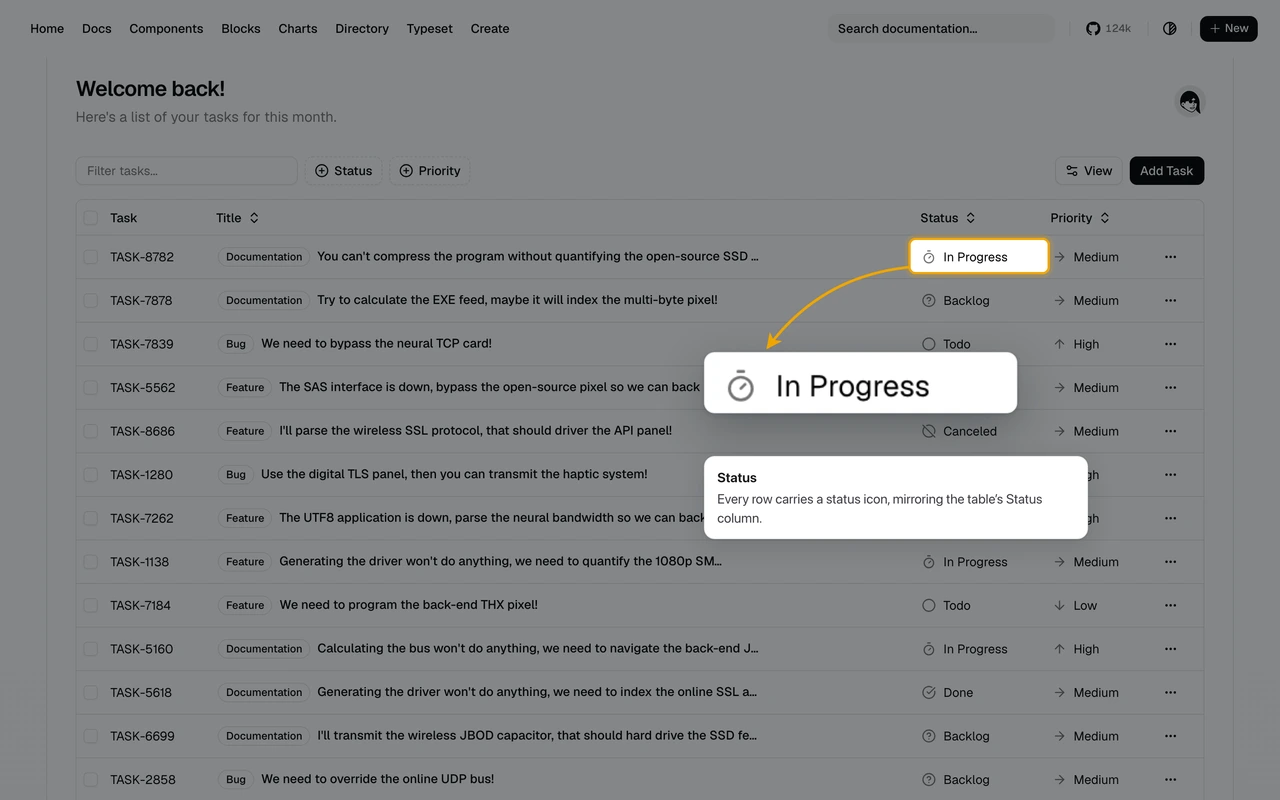

A task list where one small status chip has been cropped, enlarged about two and a half times, and placed in empty space below, with a caption card next to it. — A status chip is 22px tall. Documentation renders this image at about 700px wide, at which point 22px is unreadable. Magnified, the detail becomes the subject while the whole screen stays visible for context.

The finding that was not the point

Annotating two real product captures turned up things that should not leave the building. One screenshot of a workflow editor showed an API key in plain text inside a branch condition. Another showed a sidebar listing the titles of private conversations.

Neither was noticed while taking the capture. Both were obvious the moment something went through the image element by element asking what each one was.

What I take from it

Drawing the box is mechanical. Placing the caption is the work. Every time this produced a bad figure, it was a caption sitting on top of the thing it named, and every time it was because the interface had no gap to put it in. That is a layout judgement about the screenshot, and it is the piece that did not become a command.

A spec file beats a design file, for this. The figures are code, so a screenshot retaken next month is re-annotated in one command instead of reopened and redrawn. The cost is that the first version of any figure is worse than a hand-drawn one, and it takes a pass or two to settle.

An annotation pass is an accidental privacy review. Nobody set out to audit these captures. Looking at every region closely enough to describe it is what surfaced the key and the conversation titles, which is a reason to do the pass before publishing rather than after.

A blur is not redaction. The renderer blurs with a backdrop filter, and a 14px blur over 13px text is unreadable but not provably unrecoverable. For anything actually secret the answer is a solid block, which is why the two captures carrying one are described here rather than shown.
